Garage door openers are a fantastic convenience until something goes awry. When an issue with garage door issues does occur, it’s beneficial to know some basic troubleshooting techniques. Here’s a comprehensive guide to help you diagnose and possibly fix some common garage door opener problems.
1. The Garage Door Doesn’t Respond to Remote or Wall Switch
Possible Cause: Power source disconnection.
Solution: Check the outlet where the new garage door opener is plugged in and ensure it’s functioning properly.
Additional Tip: If the outlet is working, inspect the circuit breaker, fuse, or GFCI.
2. The Remote Works, But the Wall Switch Doesn’t
Possible Cause: Faulty switch or wiring.
Solution: Replace the wall switch and wires.
Additional Tip: If you’re unsure about handling electrical components, consult a professional.
3. You Have Power, But There’s No Sound or Lights
Possible Cause: The motor could be burned out.
Solution: In most cases, you will need to replace the door opener motor, or the whole unit.
Additional Tip: Consult the owner’s manual or a professional installer for guidance.
4. Garage Door Motor Runs Without Door Moving
Possible Cause: The main gear drive may be damaged.
Solution: Replace the main gear drive.
Additional Tip: It’s typically more cost-effective to replace the entire opener.
5. Garage Door Won’t Open All the Way or Closes Immediately
Possible Cause: Up-force or down-force adjustments are required.
Solution: Consult your owner’s manual for adjustment instructions.
Additional Tip: If adjustments don’t solve the problem, consult a professional.
6. Symptoms Related to Lights
Possible Cause: Burned-out bulbs, bad sockets, or circuit board issues.
Solution: Replace bulbs or sockets, or consult a technician if the problem lies in the circuit board.
7. The Trolley Carriage Moves But Garage Door Doesn’t Open
Possible Cause: Broken trolley carriage or chain.
Solution: Replace the trolley carriage or chain.
Additional Tip: Make sure to align the chain properly during installation.
8. Common Reasons Why Your Garage Door Won’t Close
Possible Cause: Limit setting issues or misaligned sensors.
Solution: Adjust the limit settings or realign the sensors.
Additional Tip: Make sure no objects are obstructing the sensors.
9. Security Features Like Rolling Codes Aren’t Working
Possible Cause: Remote control synchronization problem.
Solution: Re-synchronize the remote with the garage door opener model’s frequency.
Additional Tip: Consult the user manual for specific instructions.
10. Garage Door Reverses Before Hitting the Floor
Possible Cause: Close-force setting may be misadjusted, or there might be something in garage door’s path obstructing the door’s path.
Solution: Adjust the close-force setting according to your manual or check for any obstruction.
Additional Tip: Look for any signs of wear on the rollers and hinges and lubricate as needed.
11. Remote Control Only Works Up Close
Possible Cause: Weak battery, antenna issue, or possible interference from other devices.
Solution: Replace the remote’s battery, ensure the antenna is hanging down from the motor unit, or identify and remove the source of interference.
Additional Tip: Sometimes reprogramming the remote helps in solving the issue.
12. Door Makes a Lot of Noise During Operation
Possible Cause: Lack of lubrication, loose hardware, or worn rollers.
Solution: Lubricate all moving parts, tighten any loose bolts or screws, or replace worn rollers.
Additional Tip: Regular maintenance helps to prevent noise-related issues.
13. Garage Door Opens But Motor Continues to Run
Possible Cause: Up-limit switch may need to be moved away from the motor unit.
Solution: Move the up-limit switch away from the motor unit according to the instructions in your manual.
Additional Tip: If the problem persists, the limit switch may be faulty and need replacement.
14. Garage Door Closes But Immediately Reopens
Possible Cause: The open and close limit settings are out of adjustment, causing the door to hit the ground too hard.
Solution: Refer to your manual and adjust the settings so the garage door opening and closes smoothly without hitting the ground too hard.
Additional Tip: Make sure that there are no obstructions or safety sensors, and the sensors are properly aligned.

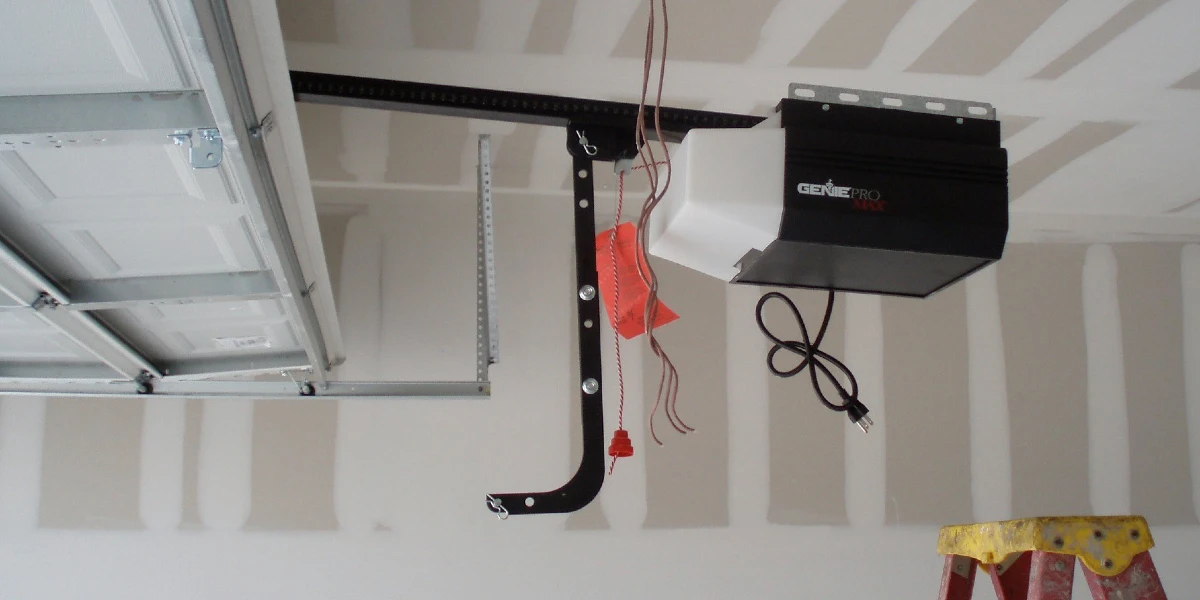

Wiring Problems
Possible Cause: Damaged or loose wires connecting the sensors, wall switch, or motor unit. This can lead to inconsistent or non-responsive behavior.
Solution: First, shut off power to the garage door opener for safety. Then, visually inspect the wires for damage or disconnection. If you notice any frayed or damaged wires, it’s best to call a professional technician, as dealing with electrical components can be hazardous. If a wire is disconnected, you may reconnect it according to your garage door repair manual’s wiring diagram.
Additional Tip: Regularly check for any visible wear and tear in the wiring of new garage doors, especially if your garage is exposed to extreme temperatures or moisture. These factors can contribute to the degradation of wires over time.
Warning: Never attempt to repair or replace wires unless you have experience with electrical work. Incorrectly handling wires can lead to serious injury or further damage to the system.
Wiring issues can be complex and require careful attention. When in doubt, contacting a professional like Jolly Goat Garage Doors is often the best course of action. Professionals have the necessary tools and expertise to diagnose and repair wiring problems safely and efficiently.
Get expert help on all things garage doors
Troubleshooting garage door opener problems can be a complex process, depending on the issue at hand. Some garage door problems may require professional repair or replacement. Always consult the owner’s manual and consider contacting a specialized company like Jolly Goat Garage Doors if the situation seems beyond your expertise. Regular maintenance can also help prevent many of these problems, ensuring a long and hassle-free life for your garage door opener. Safety should always be your priority, so don’t hesitate to seek professional help if you’re unsure about a repair.
